Torque Sealants
Visual securing of screw connections
Standard Range
Standard Range Torque Sealant is the essential tool for protecting, marking, filling, and sealing work involving all kinds of screw-securing jobs.
Colors
White
Yellow
Red
Blue
Green
Orange
Pink
Grey
Black
Transparent
Features
- Extremely good adhesion
- Fast drying
- Insulating
- Good media resistance
Dangerous goods free
Road
Rail
Warning
Downloads
Technical Data Sheet
Standard Range
Material Safety Data Sheet
Standard Range
Container and suggested screw sizes
- Tube 20 ml
- Tube 50 ml
- Cartridge 30 ml / 50 ml
- Can 1 kg
- M3 - M24
- M12 - M48
- M1 - M48
- ---
Industry Specifications
- Airbus Specification ECS‑L 2274
- Boeing Specification BMS8 45 Type II
- Rolls-Royce Specification MSRR1102
- Bosch-Norm 2580–1
- Safran Specification HMDC6002
Flow properties
Flow
The paint system is relatively thin and has self-levelling flow properties
Standards
UV and weather resistant for min. 10 years*
*according to DIN EN ISO 2810
Zero range
Zero Range Torque Sealant is the first 100% water based securing lacquer system that works completely without organic solvents (VOC-free).
Colors
White
Yellow
Red
Blue
Green
Grey
Black
Neon - Orange
Features
- Food safe*
- Water-based
- VOC-free
- HAP-free
- Insulating
- Good media resistance
*according to Regulation (EC) No. 1935/2004 and complies with the regulations of the German Food and Feed Code (Lebensmittel- und Futtermittelgesetzbuch, LFGB).
Warning
Downloads
Technical Data Sheet
Zero Range
Material Safety Data Sheet
Zero Range

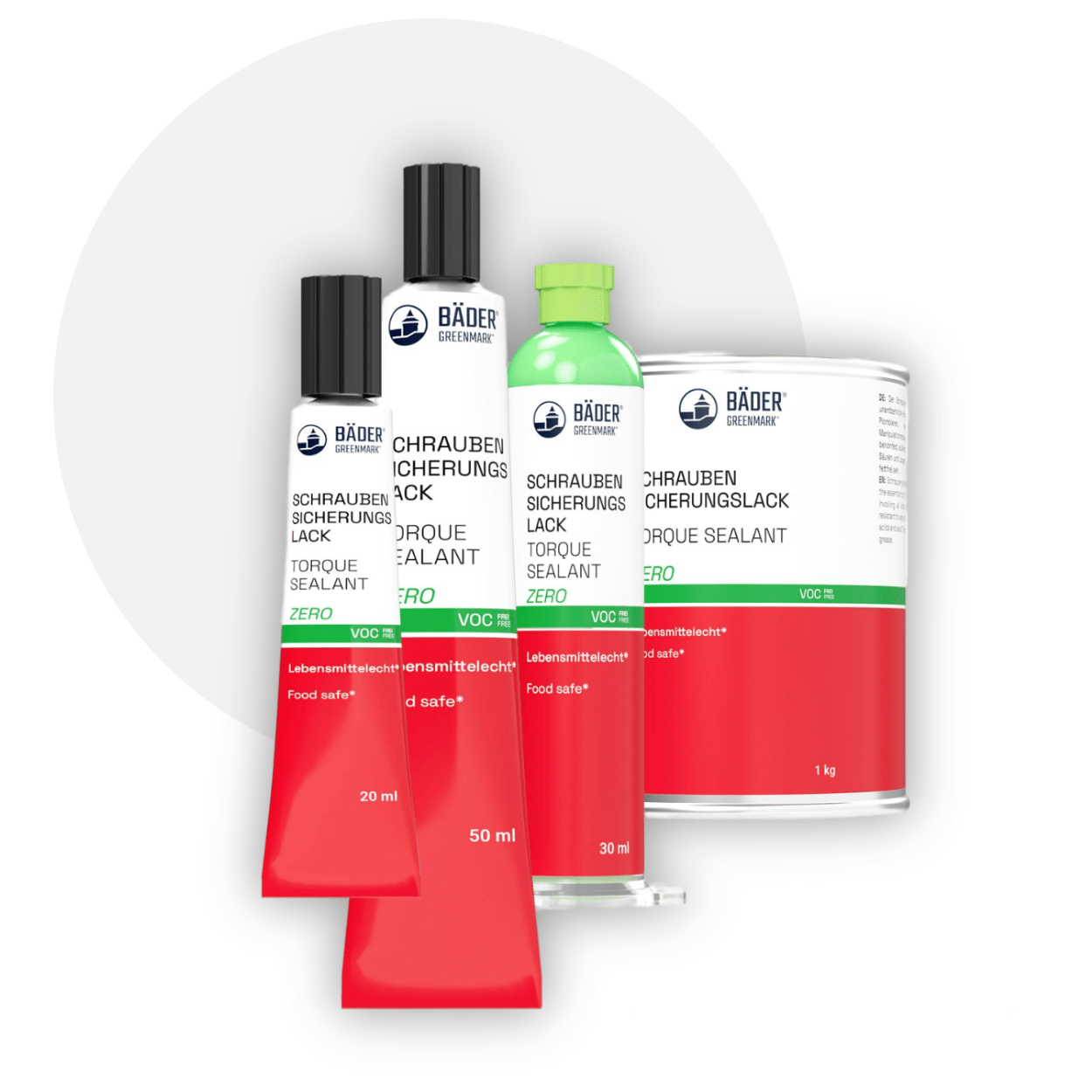

Container and suggested screw sizes
- Tube 20 ml
- Tube 50 ml
- Cartridge 30 ml / 50 ml
- Can 1 kg
- M3 - M24
- M12 - M48
- M1 - M48
- ---
Industry Specifications
- Boeing Specification BMS8 45 Type II
- Rolls-Royce Specification MSRR1102
- Bosch-Norm 2580–1
Flow properties
Medium-Flow
The coating system is medium viscosity and has slight self-levelling flow properties, as well as moderate anti-flow properties
Standards
UV and weather resistant for min. 4 years (elapsed time since start of test)*.
*according to DIN EN ISO 2810
Dangerous goods free
Road
Rail
Air
Water
Fast Dry Range
Fast Dry Range Torque Sealant is an extremely fast drying tamper-proof sealant that is characterized by excellent anti-flow behavior and good adhesion properties.
Colors
White
Yellow
Red
Grey
Pink
Blue
Orange
Green
Black
Features
- Extreme fast drying
- No running
- Insulating
- Good media resistance
Dangerous goods free
Road
Rail
Warning
Downloads
Technical Data Sheet
Fast Dry Range
Material Safety Data Sheet
Fast Dry Range
Container and suggested screw sizes
- Tube 20 ml
- Tube 50 ml
- Cartridge 30 ml / 50 ml
- Can 1 kg
- M3 - M24
- M12 - M48
- M1 - M48
- ---
Industry Specifications
- Airbus Specification ECS‑L 2274
- Boeing Specification BMS8 45 Type II
- Rolls-Royce Specification MSRR1102
- Bosch-Norm 2580–1
- Safran Specification HMDC6002
Flow properties
Anti-Flow
The paint system is relatively thick and has anti-flow properties
Standards
UV and weather resistant for min. 3 years (and counting)*
*according to DIN EN ISO 2810
Anti-Flow
The paint system is relatively thick and has anti-flow properties
 |  |  | |
| Product | Standard Range | Zero Range | Fast Dry Range |
| Viscosity | 15.000 – 20.000 mPas | 10.000 – 30.000 mPas | 20.000 – 30.000 mPas |
| VOC value* | 540 g/L ±20 g/L | 0 g/L | 520 g/L ±20 g/L |
| Application temperature | -20° C – 35° C | 2° C – 35° C | -20° C – 35° C |
| Temperature stability | -80° C – 160° C | -80° C – 120° C | -80° C – 125° C |
| pH value | – | ca. 8 – 9 | – |
| Flashpoint | 29° C | – | -4° C |
| Dust-dry after** | approx. 5 min | approx. 10 min | approx. 1 min |
| Fully hardened after** | approx. 24 hours | approx. 12 hours | approx. 24 hours |
| Density | ca. 1,05 g/cm3 | ca. 0,98 g/cm3 | ca. 1,05 g/cm3 |
| Shelf life | 6 – 48 months | 6 – 24 months | 6 – 24 months |
|
|
|
|
| Water |  |
|
|
| Gasoline | |
|
|
| Super 95 | |
 |
|
| White Spirit 135/175 | |
|
|
| Special boiling point product 100/140 | |
|
|
| Ethanol | |
|
|
| Isopropyl alcohol (IPA) | |
|
|
| n-Butanol | |
|
|
| 2‑Methoxy-1-Propanol | |
|
|
| Butylacetate |  |
|
|
| Ethylacetate | |
|
|
| Acetone | |
|
|
| Methyl ethyl ketone (MEK) | |
|
|
| Titanium grease | |
|
|
| WD-40 | |
|
|
| Hydrochloric acid 0,5 mol/l | |
|
|
| Hydrofluorether | |
|
|
*May vary slightly depending on the respective colour.
**Drying and through-drying speed are strongly dependant on the layer thickness and the ambient conditions. Please test for your own application.
Resistant: no or very little impairment
Limited Resistance: weak to moderate attack
Unstable: strong attack/paint dissolves in medium

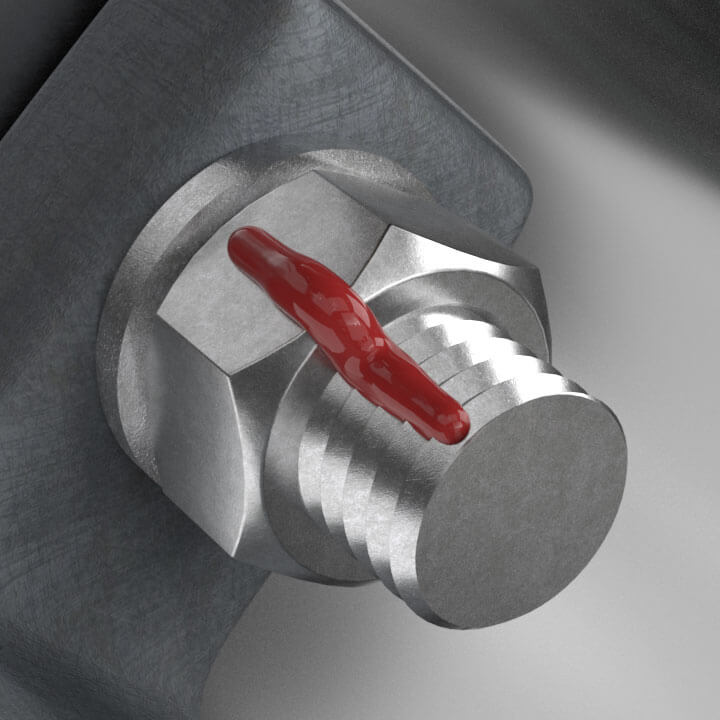

How does Bäder® Torque Sealant work?
When applying the Bäder® tamper check paste, the screw, and the fastener should be thoroughly cleaned of oil, grease, moisture, and rust.

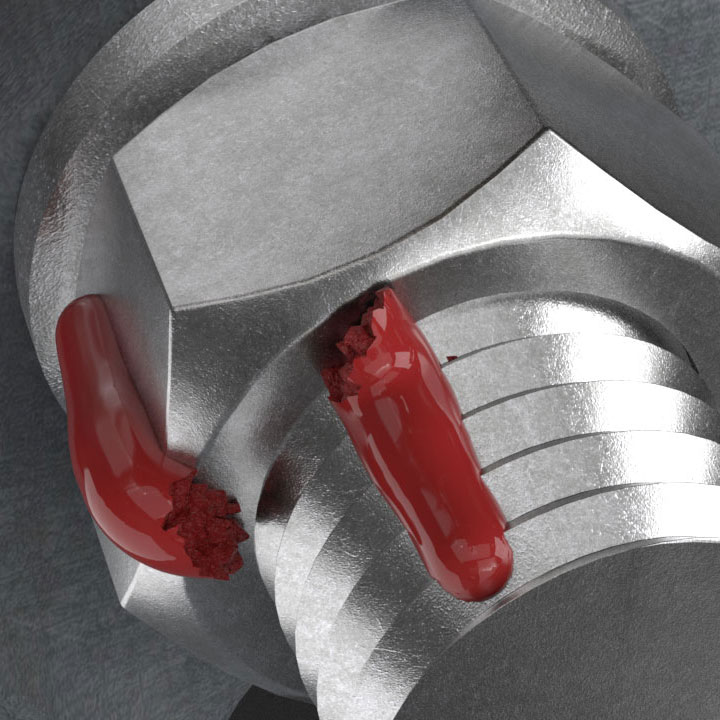

Once the Bäder® torque seal paste is completely dry, the torque seal paste acts as a seal and breaks as soon as the screw connection loosens due to vibrations or tampering.
